Internal or External? CT Scanning vs. 3D Scanning Explained for Fast, Accurate Inspection
When you’re deciding on inspection methods, two nondestructive options stand out: 3D scanning and CT (computed tomography) scanning. Each has its own advantages — the right choice depends on your part’s geometry, quality demands, and what you need to inspect.
What Is 3D Scanning?

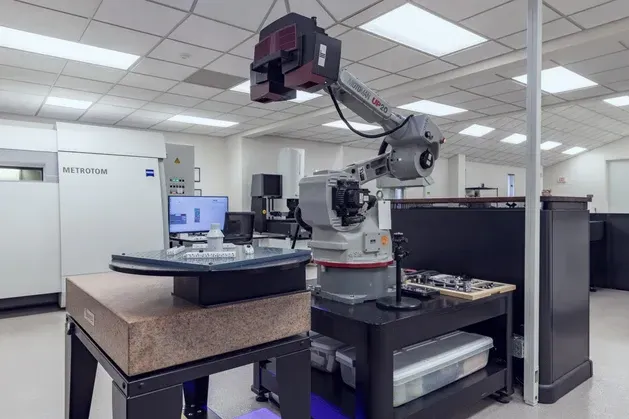

3D scanning captures the external surfaces of a part using structured‑light or laser systems. It builds a dense point cloud or mesh, which is useful for reverse engineering, dimensional verification, or surface defect detection. Because it's non-contact, it’s fast and efficient for external measurements.
What Is CT Scanning?

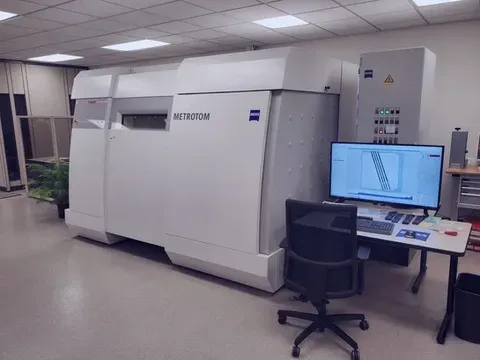

CT scanning uses X-rays to generate a volumetric 3D model of a part, revealing both internal and external features. As the part rotates, multiple radiographs are collected and reconstructed into a complete volume.
This makes CT especially valuable for analyzing internal cavities, porosity, wall thickness, or hidden assemblies — all without destroying the part. SpringerLink+1
Speed & Data Throughput
- 3D scanning: Since it only captures surface geometry, scan times can be as short as seconds or minutes, and data is ready quickly for CAD or inspection software.
- CT scanning: Takes longer. Acquiring X-ray projections and reconstructing them into a full volume can take
hours, depending on part size, density, and complexity.
Even with the time cost, CT provides insight that surface scanning simply cannot.
Accuracy, Resolution & Feature Detection
- 3D scanning offers high accuracy on external surfaces, making it ideal for dimensional checks and reverse engineering.
- CT scanning, meanwhile, can deliver very precise internal measurements. In metrology‑grade CT systems, accuracy can fall into the single‑ or double‑digit micron range for internal features. IMEKO
Academic studies have shown that CT is also very effective for defect detection, density measurement, and dimensional evaluation in 3D-printed (additive manufactured) parts. SpringerLink
Material and Surface Considerations
Material properties and surface conditions affect which method is more suitable:
- For
3D scanning, shiny or transparent surfaces may require surface treatment or coating to be captured accurately.
- CT scanning, on the other hand, is largely independent of surface finish because X-rays can penetrate through coatings or surface textures. SpringerLink
That makes CT especially useful for parts with complex surfaces, coatings, or multi-material constructions.
Case Study: Additive Manufacturing Inspection
In additive manufacturing (AM), internal complexity such as lattice structures or internal channels is common. Traditional external inspection often misses defects inside these complex parts.
A review of CT use in AM showed that CT is extensively used to detect internal defects, perform dimensional evaluation, measure internal density, and assess surface roughness — all without destructively cutting into the part. SpringerLink
More recently, researchers on arXiv have developed advanced CT reconstruction methods (such as super-resolution algorithms) to improve defect detection in AM parts while reducing scan time. arXiv
These developments make CT-based inspection more practical and cost-effective for quality-critical AM components.
Cost vs. Risk Tradeoffs
- 3D scanning is generally less expensive because of its speed and minimal post-processing. It’s cost-effective for tasks where internal structure is not a concern.
- CT scanning involves more specialized equipment and analytical effort, increasing cost. But for parts where internal defects could lead to failure, the risk of skipping CT can far outweigh the inspection expense.
According to NIST’s
Manufacturing Cost Guide, a significant portion of manufacturing cost is linked to defects, scrap, or rework. NIST+1
Reducing internal defects with CT inspection can therefore protect against very costly downstream problems.
Best Practice: Combine Methods Strategically
Many quality teams use a hybrid inspection strategy:
- Use
3D scanning for fast external checks and surface geometry validation.
- Use
CT scanning when internal geometry, hidden flaws, or structural integrity matter.
This combined approach provides a full understanding of a component — both outside and inside — without compromising on speed or insight.
Conclusion: Make the Right Choice or Talk to a Specialist
Choosing between 3D scanning and CT scanning isn’t just about cost — it’s about risk, part design, and quality goals.
- Opt for
3D scanning when external dimensions and surface fidelity are your priority.
- Opt for
CT scanning when internal features, voids, or critical internal structure matter.
If you're evaluating parts with complex geometry or internal features, fill out the Contact Us form on our website. A metrology expert will review your part’s requirements, recommend the most suitable inspection approach, and provide a tailored quote — helping you make a confident, risk-aware decision.
Sources / References
- Welkenhuyzen, F. et al., “Accuracy Study of a 450 kV CT System with a Calibrated Test Object,” IMEKO TC14 (metrology‑grade CT accuracy). IMEKO
- “On the Use of X-ray Computed Tomography in Assessment of 3D-Printed Components,”
Journal of Nondestructive Evaluation (defect detection, dimensional evaluation, density measurement). SpringerLink
- “2.5D Super-Resolution Approaches for X-ray Computed Tomography-based Inspection of Additively Manufactured Parts,” arXiv (super-resolution algorithm for AM CT). arXiv
- “The Manufacturing Cost Guide: A Primer – Version 1.0,” NIST Advanced Manufacturing Series (cost of defects). NIST+1
“NIST: Closing Tech Gaps Can Fortify Advanced Manufacturing and Save $100 Billion Annually,”
Quality Magazine (importance of measurement science in manufacturing). Quality Magazine
